INSTALL A LIVE END PLUG OR ELECTRICAL FEED
1. Make sure the power is off.
2. Before installing the track rail, identify the side that accepts the live end connector. Confirm that the polarity of the rail is in the correct direction for the electrical adapter and all accessories. The plug end and all accessories will only fit in one direction. The groove in the rail indicates the neutral side.
3. Brace the opposite end of the track against a solid surface.

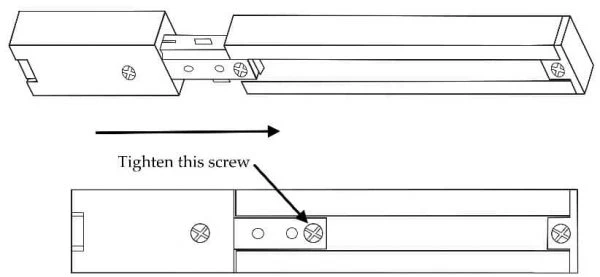

4. Insert the live end and secure by tightening the screw.
5. Raise track assembly to the ceiling. Mark hole locations.
6. Two types of fasteners are provided; a nylon self-drilling anchor for drywall ceilings and a butterfly anchor for plaster and lath ceilings or drop ceilings.
6a. The nylon self-drilling anchors can be installed in the ceiling with either a screw driver or drill. Press the anchor into the ceiling and screw the anchor in. Put the track rail in place and tighten the metal screw into the anchor until the rail is secured.
6b. Butterfly anchors (toggle bolts) require a 5/8 inch drill bit. First, prepare the track rail by routing the bolt through the rail. Thread on the toggle so that the tips of the wings are facing down towards the screw head. Squeeze the toggle closed and insert into the hole in the ceiling. The wings of the toggle will open in the ceiling, allowing you to tighten the bolt. You may need to carefully pull down on the screw head or rail so the wings catch on the ceiling. Tighten until the rail is secure.
7. Use staples, fairleads, wire mold, hooks, command hooks or other products to secure the wire along the ceiling and wall.
8. Set an outlet timer to your desired light cycle, we recommend between 12-16 hours. Do not exceed 18 hours of light per day! Your plants need to sleep and too much light will kill them.
9. Install the Highland™ LED lights.
