How to install the ceiling canopy

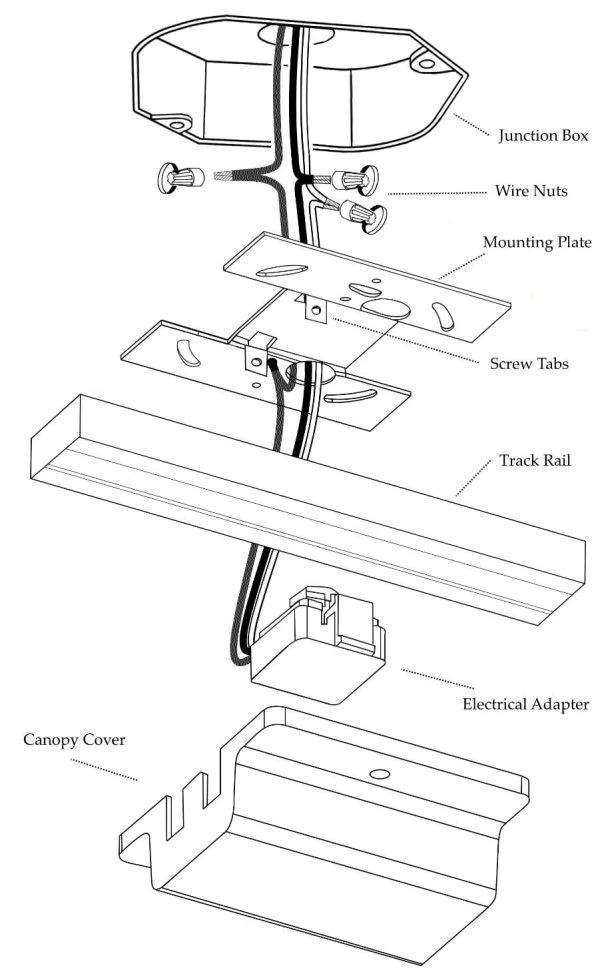

INSTALL AN ELECTRICAL FEED FROM A JUNCTION BOX WITH FLOATING CANOPY

1. Make sure the power is off.
2. Route the wires from the electrical adapter through the mounting plate.
3. Connect the wires to the existing wiring from the junction box.
4. Tuck excess wiring back into the junction box.
5. Install the mounting plate to the junction box.
6. Before installing the track rail, confirm that the polarity of the rail is in the right direction for the electrical adapter and all accessories. Accessories, such as connectors, elbows, and plugs will only fit in one direction. The groove in the rail indicates the neutral side.
7. Raise track assembly to the ceiling. Mark hole locations.
8. Two types of fasteners are provided; a nylon self-drilling anchor for drywall ceilings and a butterfly anchor for plaster and lath ceilings or drop ceilings.
8a. The nylon self-drilling anchors can be installed in the ceiling with either a screw driver or drill. Press the anchor into the ceiling and screw the anchor in. Put the track rail in place and tighten the metal screw into the anchor until the rail is secured.
8b. Butterfly anchors (toggle bolts) require a 5/8 inch drill bit. First, prepare the track rail by routing the bolt through the rail. Thread on the toggle so that the tips of the wings are facing down towards the screw head. Squeeze the toggle closed and insert into the hole in the ceiling. The wings of the toggle will open in the ceiling, allowing you to tighten the bolt. You may need to carefully pull down on the screw head or rail so the wings catch on the ceiling. Tighten until the rail is secure.
9. Tighten the screws located on the screw tab to secure the track rail to the mounting plate.
10. Twist in the electrical adapter into the track rail. Take note of the polarity of the track rail and the polarity of the electrical adapter. The side of the electrical adapter that has two contacts should twice into the side of the rail with a groove. Do not force the adapter in the wrong way, it will break.
11. Install the canopy cover and secure with screws.
12. Install the Highland LED lights
